Test Mixing Roll
Test Mixing Roll is designed for laboratories. Depending on the customer’s needs, the most suitable specification can be offered.
Specifications for each model
Model
ML-D4L10-INV
Roll diameter×length
Φ4×10 inch（Φ100×250 mm）
Mixing capacity
0.1～0.5 kg
Adjustable nip gap
0.1～3 mm
Front roll speed
3.3～36.0 rpm
Rear roll speed
4.6～50.4 rpm
Roll speed ratio
（F:R）1:1.4
Drive motor
3.7kW
Cooling / Heating system
Chilled water circulation system
Temp. range
40～90℃
Power supply
AC200V 3-phase 50/60Hz
Dimensions／Weight
W150xD70xH160 cm / 700 kg
Model
ML-D6L12-INV
Roll diameter×length
Φ6×12 inch（Φ150×300 mm）
Mixing capacity
0.2～1.0 kg
Adjustable nip gap
0.1～3 mm
Front roll speed
2.2～24.0 rpm
Rear roll speed
3.1～33.6 rpm
Roll speed ratio
（F:R）1:1.4
Drive motor
5.5kW
Cooling / Heating system
Chilled water circulation system
Temp. range
40～90℃
Power supply
AC200V 3-phase 50/60Hz
Dimensions／Weight
W180xD80xH160(cm)/1,000kg
Model
ML-D8L18-INV
Roll diameter×length
Φ8×18 inch（Φ200×450 mm）
Mixing capacity
1.0～2.0 kg
Adjustable nip gap
0.5～4.0 mm
Front roll speed
1.7～18.0 rpm
Rear roll speed
2.4～25.2 rpm
Roll speed ratio
（F:R）1:1.4
Drive motor
7.5kW
Cooling / Heating system
Chilled water circulation system
Temp. range
40～90℃
Power supply
AC200V 3-phase 50/60Hz
Dimensions／Weight
W210xD90xH160(cm)/1,200kg
Model
ML-D4L10-HT-INV
Roll diameter×length
Φ4×10 inch（Φ100×250 mm）
Mixing capacity
0.1～0.5 kg
Adjustable nip gap
0.1～3.0 mm
Front roll speed
4.8～59.0 rpm
Rear roll speed
4.1～50.4 rpm
Roll speed ratio
（F:R）1.17:1
Drive motor
2.2kW
Cooling / Heating system
3 zones of electical heating
Temp. range
50～280℃±5℃
Power supply
AC200V 3-phase 50/60Hz
Dimensions／Weight
W170xD70xH160(cm)/700kg
Model
ML-D6L12-HT-INV
Roll diameter×length
Φ6×12 inch（Φ150×300 mm）
Mixing capacity
0.2～1.0 kg
Adjustable nip gap
0.1～3.0 mm
Front roll speed
3.6～39.3 rpm
Rear roll speed
3.1～33.6 rpm
Roll speed ratio
（F:R）1.17:1
Drive motor
3.7kW
Cooling / Heating system
3 zones of electical heating
Temp. range
50～280℃±5℃
Power supply
AC200V 3-phase 50/60Hz
Dimensions／Weight
W200xD80xH160(cm)/1,000kg
Model
ML-D8L18-HT-INV
Roll diameter×length
Φ8×18 inch（Φ200×450 mm）
Mixing capacity
1.0～2.0 kg
Adjustable nip gap
0.5～4.0 mm
Front roll speed
1.7～29.5 rpm
Rear roll speed
1.5～25.2 rpm
Roll speed ratio
（F:R）1.17:1
Drive motor
5.5kW
Cooling / Heating system
3 zones of electical heating
Temp. range
50～280℃±5℃
Power supply
AC200V 3-phase 50/60Hz
Dimensions／Weight
W230xD90xH160(cm)/1,200kg

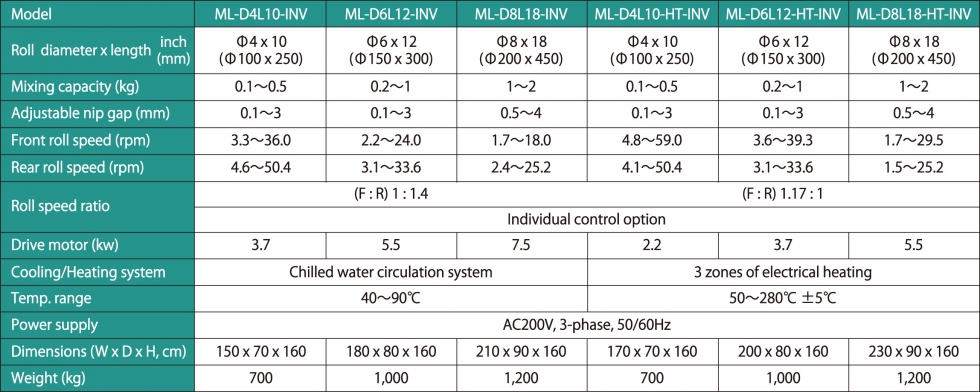

Specifications comparison chart
